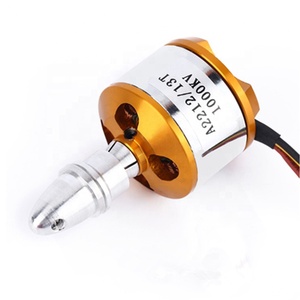

A2212/13T 1000KV Brushless Outrunner Motor for RC Airplane Aircraft Quadcopter

This is one of the most popular brushless outrunner motors among RC hobbyists. It is equivalent to E-flite Park 400, AXI 2212, or Turnigy 28-30 sizes. It is an excellent replacement for Speed 400 motors in 3D aeroplanes up to 15 oz, trainers up to 25 oz, and gliders up to 28 oz.

The motor features a 3.17-mm hardened steel shaft and dual ball bearings for a smooth and steady rotating motion. A bullet-type propeller adapter and cross-motor mount are included.

**RECOMMENDED SETUP:**

• 3S LiPo, 1000-1800 mAh according to aircraft weight

• 25 or 30A ESC

• 9x4.7 or 10x5 propellers

**SPECIFICATIONS:**

• Number of Cells: 2-3s LiPo; 6-10 s NiMh

• Max Efficiency: 80%

• Internal Resistance: 90 mΩ

• Max Current: 12A/60s

• Max Watts: 150 watts

• Max Efficiency Current: 4-10A (>75%)

• No Load Current (10v): 0.5A

• Shaft Size: 3.17mm

• Poles: 14

• Weight: 52.7g (including all accessories)

• Dimensions: 27.5mm x 30mm

• Minimum Recommended ESC: 18A

• Recommended Model Weight: 300-800g

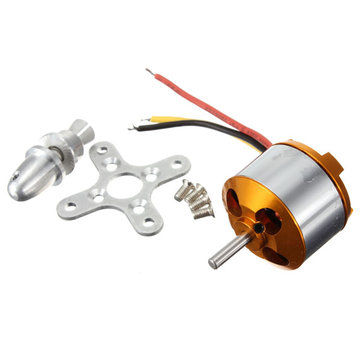

**PACKAGE INCLUDES:**

• 1 x A2212/13T 1000KV Brushless Motor

• 1 x Bullet-type propeller adapter

• 1 x Cross-motor mount
