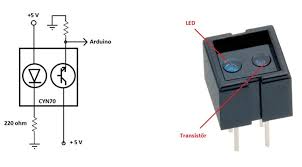

CNY70 Reflective Optical Sensor with Transistor Output

CNY70 is a compact reflective sensor combining an infrared emitter and phototransistor in a single package. Ideal for line detection, object sensing, and proximity applications.

SPECIFICATIONS:

• Detector Type: Phototransistor

• Emitter Wavelength: 950 nm

• Maximum Working Distance: <5mm

• Optimal Range: 0-5mm (for >20% relative collector current)

• Typical Output Current: IC = 1 mA

• Package: Lead-free, visible light blocking

• Dimensions: 7 x 7 x 6 mm

FEATURES:

• Daylight blocking filter

• Compact integrated design

• Lead(Pb)-free soldering compatible

• Reliable reflective sensing

TYPICAL APPLICATIONS:

• Line following robots

• Object detection

• Position sensing

• Tachometers

• Encoder wheels

PACKAGE INCLUDES:

• 1 x CNY70 Sensor
