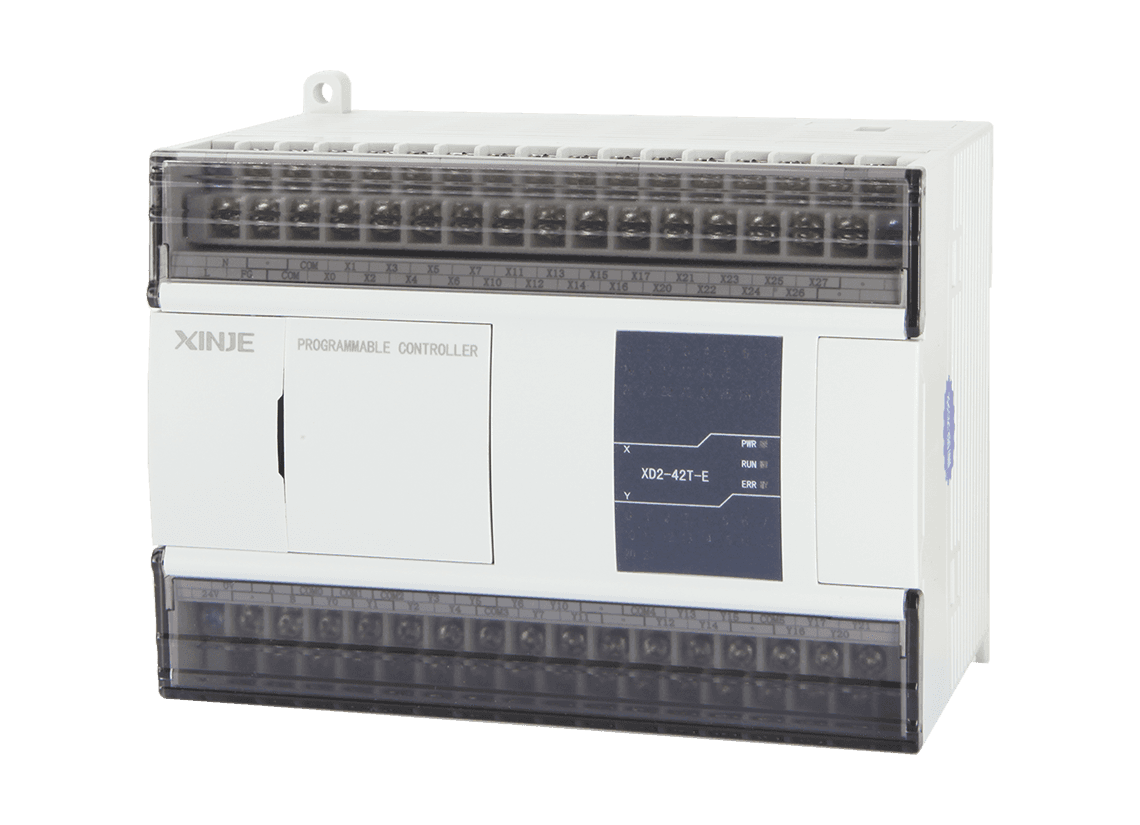

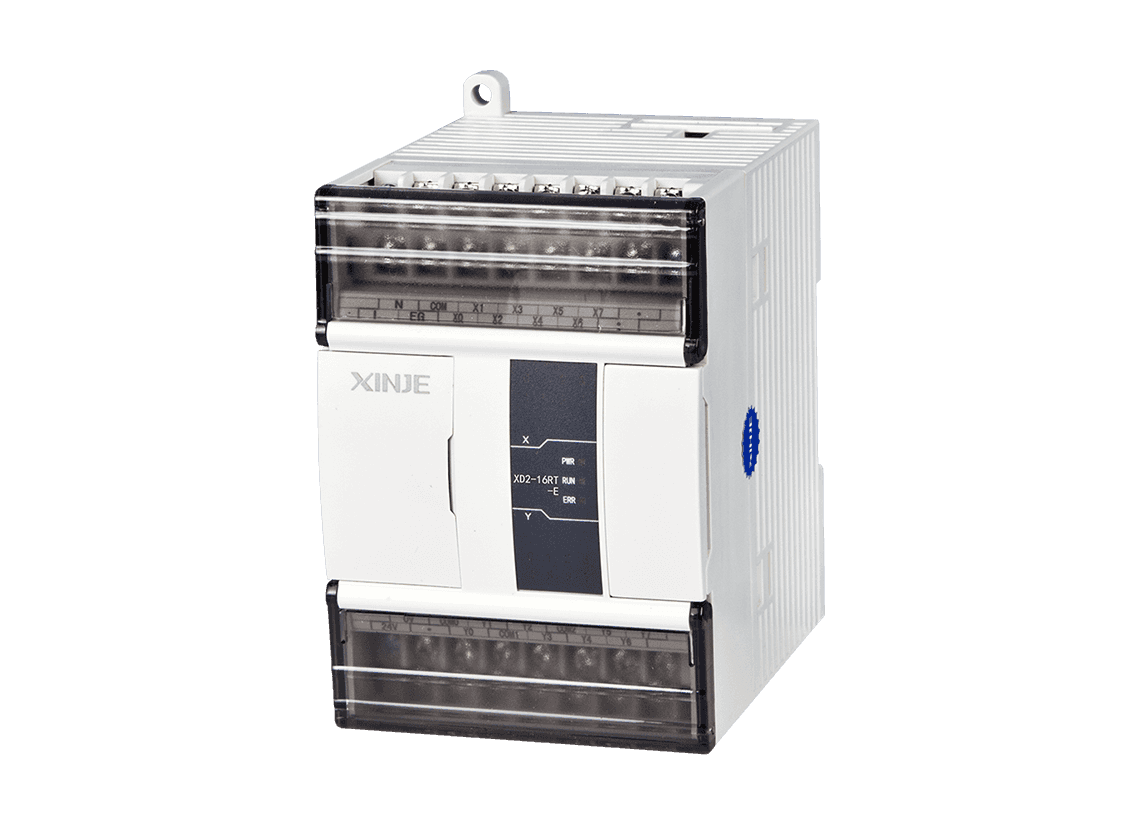

XINJE XD2 Series PLC Programmable Logic Controller (Basic Model)
📞 ගන්න කලින් අපිට කතා කරන්න!
මෙය පාවිච්චි කළ (Used) භාණ්ඩයක් නිසා, ඔන්ලයින් ඕඩර් කරන්න කලින් අපිට එක වරක් කතා කරලා පහත විස්තර අහගන්න:
✅ මේ PLC එක දැනට තියෙනවද? (Stock එක)
✅ මේකේ හරියටම තියෙන condition එක
✅ වොරන්ටිය එකක් තියෙනවද?
✅ කේබල්, software එක්ක එනවද?
✅ මිල ටිකක් අඩු කරන්න පුළුවන්ද?
📲 අමතන්න: 076 218 3549
(හදිස්සියේ නම්, WhatsApp එකෙත් කතා කරන්න පුළුවන්)
The XINJE XD2 Series is a basic model PLC designed for high-speed, stable performance in industrial automation applications. It offers complete functions including pulse output, high-speed counting, and frequency measurement to meet basic user needs.
⚠️ CONDITION: This is a **USED** unit but offers fast, stable performance with full functionality.
**KEY FEATURES:**
• High-speed processing with 0.02~0.05μs basic instruction speed
• Program capacity: 256KB
• Max I/O points: 60
• I/O sequential control
• Pulse output: 2CH 100KHz
• High-speed counting: 3CH (max 80KHz single-phase, max 50KHz AB phase)
• Communication: RS232, RS485, X-NET fieldbus
• Supports left expansion ED and BD (16 points not supported)
• Does not support right expansion modules
**TECHNICAL SPECIFICATIONS:**
• Program Memory: 256KB
• Basic Instruction Speed: 0.02~0.05μs
• Maximum I/O Points: 60
• High-Speed Counter: 3 channels
• Pulse Output: 2 channels @ 100KHz
• Communication Ports: RS232, RS485
• Fieldbus: X-NET
• Expansion Support: Left expansion ED and BD (no right expansion)
• PWM Support: Yes
• Frequency Measurement: Yes
**SPECIAL FUNCTIONS:**
• Pulse Width Modulation (PWM)
• High-speed counting (single-phase up to 80KHz, AB phase up to 50KHz)
• Frequency measurement
• Pulse output for stepper/servo control
• Basic data processing
• Sequential control
**TYPICAL APPLICATIONS:**
• Small to medium machine automation
• Conveyor systems
• Packaging machinery
• Simple motion control
• Process control systems
• Industrial automation projects
**PACKAGE INCLUDES:**
• 1 x XINJE XD2 Series PLC (Used - fully functional)
• Programming cable not included
💡 **NOTE:** This model supports left expansion modules (ED and BD) but does not support right expansion modules. 16-point expansion is not supported.
