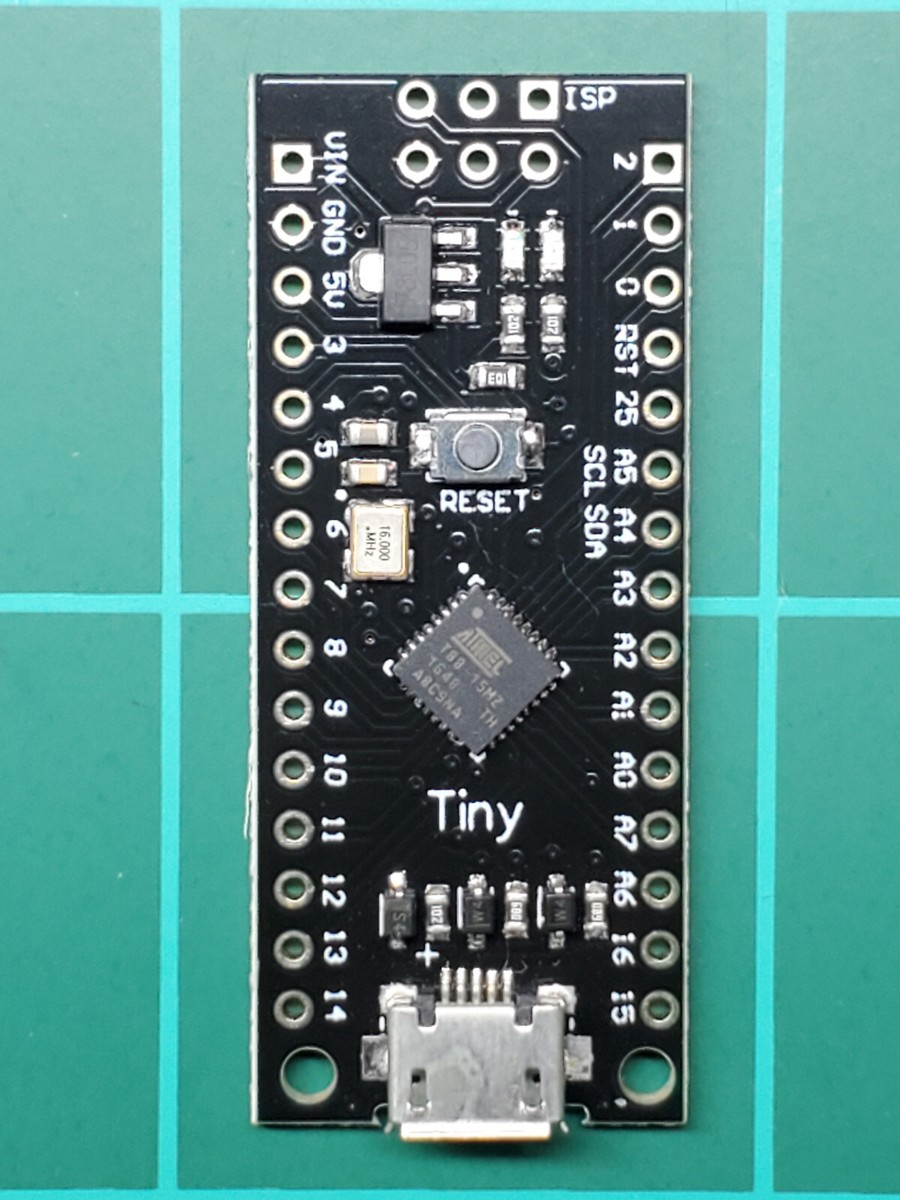

Arduino ATTiny88 Development Board

The Arduino ATTiny88 is a compact development board built around the ATtiny88 microcontroller, designed for small-scale projects and embedded applications.

KEY FEATURES:

• Fully compatible with Arduino IDE 1.0+ (OSX/Win/Linux)

• Dual power options: USB or external source (5V or 7-35V with automatic selection)

• On-board 500mA 5V voltage regulator

• Built-in USB connectivity for easy programming

• 26 digital I/O pins (all usable when USB communication is idle)

• 8KB flash memory (approximately 6KB available after bootloader)

• I2C and SPI communication protocols supported

• Software PWM on all 26 pins, hardware PWM on pins D9 and D10

• 8 analog input pins (ADC)

• Power indicator LED and status LED

• Board dimensions: 44.5mm × 18.3mm × 3mm

TYPICAL APPLICATIONS:

• Sensor monitoring and data acquisition

• Battery-powered portable devices

• LED lighting control systems

• Educational and training projects

• Home automation controllers

PACKAGE INCLUDES:

• 1 x Arduino ATTiny88 Development Board
