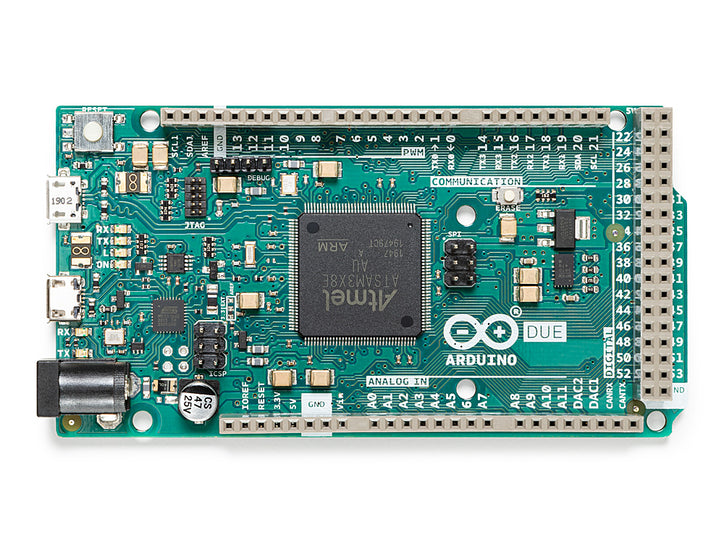

Arduino Due Development Board with USB Cable

The Arduino Due is a powerful microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It stands as the first Arduino board built around a 32-bit ARM core microcontroller, delivering significantly higher performance for demanding applications.

KEY FEATURES:

• Microcontroller: AT91SAM3X8E (32-bit ARM Cortex-M3)

• Operating Voltage: 3.3V (I/O pins are NOT 5V tolerant)

• Recommended Input Voltage: 7-12V

• Digital I/O Pins: 54 (12 with PWM output capability)

• Analog Input Pins: 12

• Analog Output Pins: 2 (true DAC - Digital to Analog Converters)

• Total DC Output Current: 130 mA (all I/O lines combined)

• 3.3V Pin Current: 800 mA maximum

• 5V Pin Current: 800 mA maximum (when powered via USB)

• Flash Memory: 512 KB (full user application space)

• SRAM: 96 KB (split into 64KB and 32KB banks)

• Clock Speed: 84 MHz

• Communication: 4 UARTs, 2 TWI (I2C), SPI, USB OTG

• Additional Interfaces: JTAG header, DAC, ERASE button

• Board Dimensions: 101.52mm × 53.3mm

• Weight: 36 grams

⚠️ IMPORTANT NOTE:

Unlike most Arduino boards, the Arduino Due operates at 3.3V. Applying voltages higher than 3.3V to any I/O pin may permanently damage the board.

TYPICAL APPLICATIONS:

• High-performance data acquisition systems

• Audio processing and signal generation

• Complex robotics control

• Industrial automation

• Projects requiring large memory and processing power

PACKAGE INCLUDES:

• 1 x Arduino Due Development Board

• 1 x USB Cable (A to B)
