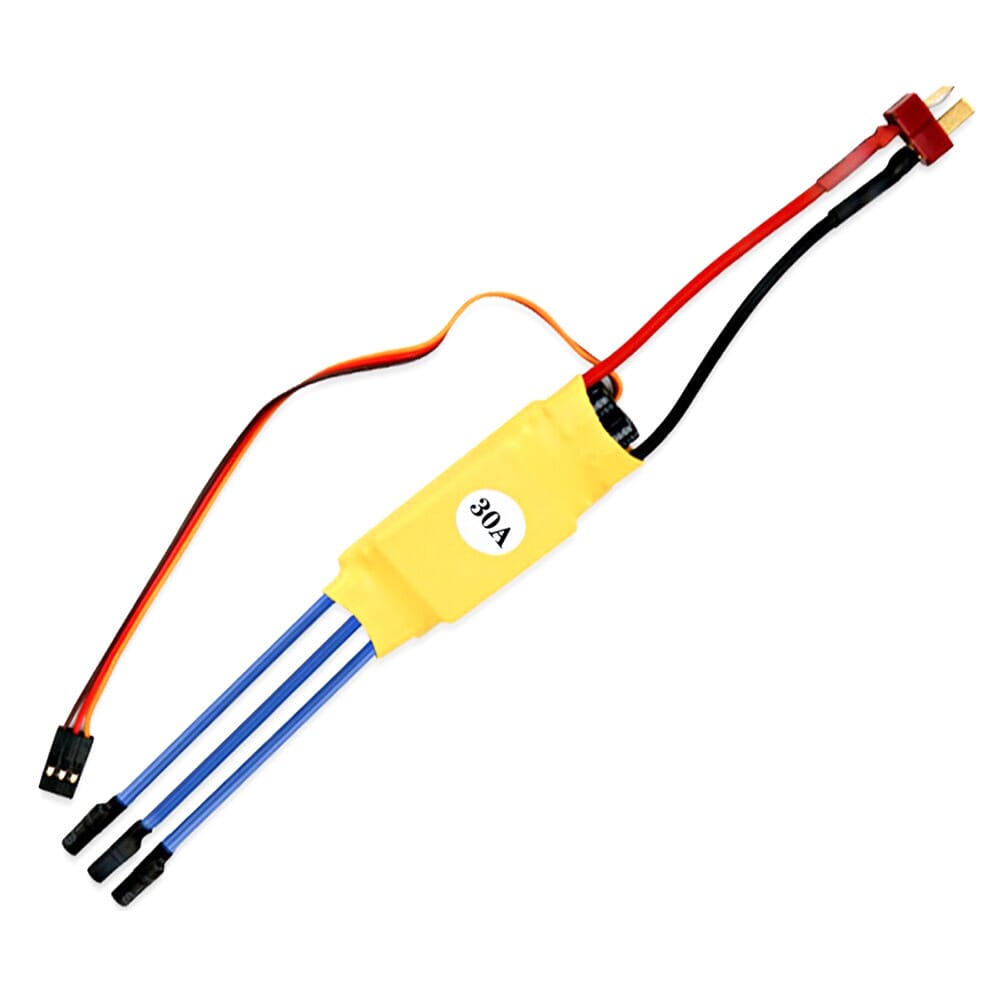

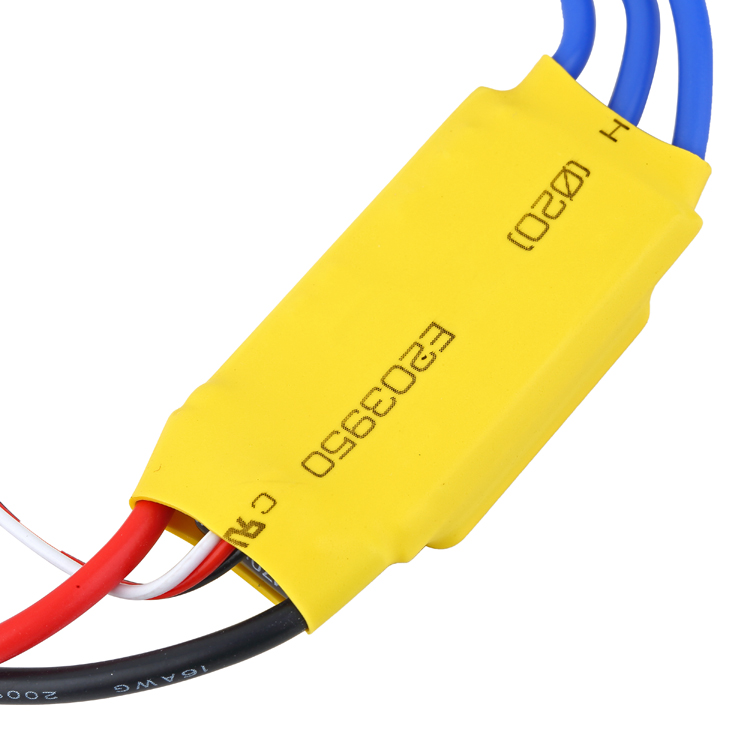

ESC 30A Electronic Speed Controller BEC 5V 3A for 2-4S Simonk Firmware

The ESC 30A Electronic Speed Controller is designed for multi-rotor aircraft, helicopters, and drones. Featuring Simonk Firmware, BEC 5V 3A output, and support for 2-4S LiPo batteries, this ESC provides reliable performance for various RC applications.

**SPECIFICATIONS:**

• Working current: 30A / 40A (burst)

• Output: Continuous 25A, Burst 40A up to 10 Secs

• Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NiMH battery

• BEC: 5V 3A (powers flight controller and receiver)

• Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 Poles BLM, 35,000rpm for 12 Poles BLM

• Weight: Approx 25g

• Firmware: Simonk (fast response for multi-rotors)

**FEATURES:**

• Safety Arming Feature: Regardless of throttle stick position, motor will not spin after battery connected

• Throttle Calibration: Throttle range can be configured for best throttle linearity

• Programmable Items: Brake Setting, Battery Type, Low Voltage Protection Mode, Cutoff Threshold, Start Mode, Timing

• Full Protection Features: Low voltage cutoff protection, Over-heat protection, Throttle signal lost protection

**COMPATIBLE WITH:**

• DIY FPV KK MK MWC RC Quadcopter

• Hexacopter Multi-Rotor Aircraft

• 210, 360, 450 Helicopter

• 380 F450, F550 and other four-axis six-axis fixed-wing drone

• RC Airplanes and boats

**THROTTLE CALIBRATION STEPS:**

1. Connect ESC/motor/receiver

2. Push the remote control throttle to maximum

3. Connect power

4. Hear the regular sound of "D-D-D..." then unplug battery

5. Reconnect power and hear "DD" quick sound

6. Pull the throttle to minimum

7. "D" sound once - calibration successful

**PACKAGE INCLUDES:**

• 1 x ESC 30A Electronic Speed Controller

• (Connector cables may vary)
