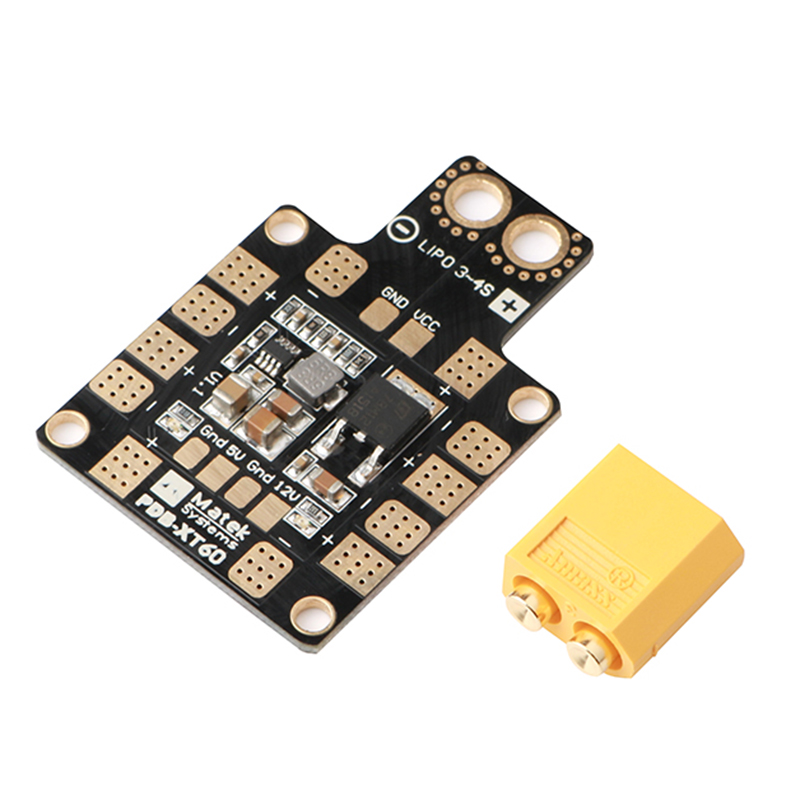

Power Distribution Board 25Ax4-5Ax6 3S-4S 5V 2A-12V 0.5A

The Power Distribution Board (PDB) is designed for multi-rotor drones and quadcopters, providing regulated 5V and 12V outputs for flight controllers, receivers, and other peripherals. Built with 2oz copper, 4-layer PCB construction for excellent current handling and heat dissipation.

**FEATURES:**

• 2oz copper, 4-layers and 1.6mm PCB

• Built-in XT60 Socket

• Total 6 pairs ESC solder tabs fit for H or X type frames

• 5V and 12V Output LED indicators

• Regulated 5V and 12V outputs

• Short circuit tolerant

**SPECIFICATIONS:**

• Input Voltage Range: 9 - 18V DC (3S-4S LiPo)

• Output Continuous Current: 25A x4 or 15A x6

• Output Peak Current: 30A x4 or 20A x6

• BEC 5V Output: 5V / 2A (Max 2.5A)

• BEC 12V Output (4S LiPo): 12V / 500mA

• BEC 12V Output (3S LiPo): =3S LiPo voltage - 1V

• Dimensions: 36 x 50 x 4 mm

• Weight: 11g (with XT60)

**PACKAGE INCLUDES:**

• 1 x Power Distribution Board with built-in XT60
